Beskrivelse

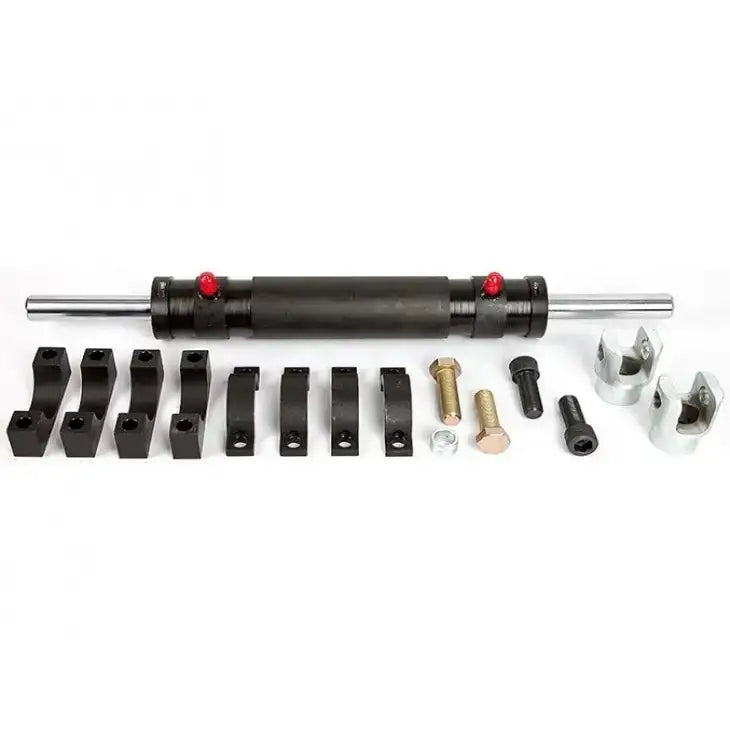

Double ended ram and clevis kit. Double ended ram designed with a rod bushing. The bushing allows the rod to absorb much higher side loads. Primary and secondary o-ring to avoid fluid leackage. Triple lip piston seal for consistent steering with no drift or fluid bypassing the piston. The cylinder has a black zinc-plate finish while rod has 3/5x16 female threads on each end and is made entirely out of 4340 chromoly material. The 6 inch ram has 6 total inches of travel and is perfect for Toyota's and narrowed Dana 44's.The 8 inch ram has 8 total inched of travel and is perfect for Dana's 44 and custom lenght applications.The 10 inch ram has 10 inches total and is used for buggies and comp rigs with up to 45 degree steering radius.SPECIFICATIONS:- Primary and secondary rod seal to avoid fluid leakage;- Two wiper seal design;- Triple lip piston seal for consistent steering with no drift or fluid bypassing the piston;- Rod with female threads on each and is made entirely out of 4340 chromoly material;- The bushing allows the rod to absorb much higher side loads.KIT INCLUDES:- (1) 6",8", 10" double endend ram;- (4) cylinder clamps;- (2) clevis ends;- (2) clevis end bolts.
