Beskrivelse
Vinsj DWH 3000 HD utviklet av DRAGON WINCH. Tilgjengelig hos Nomax.no.

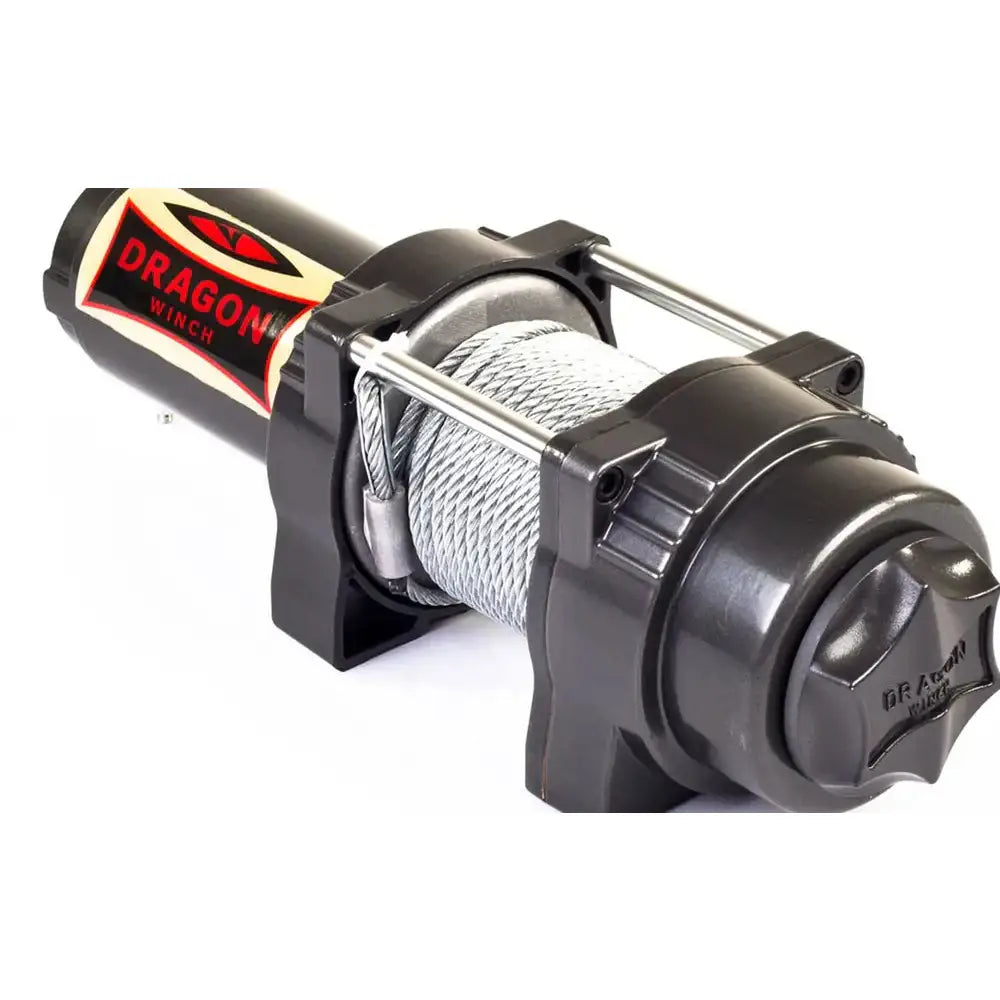

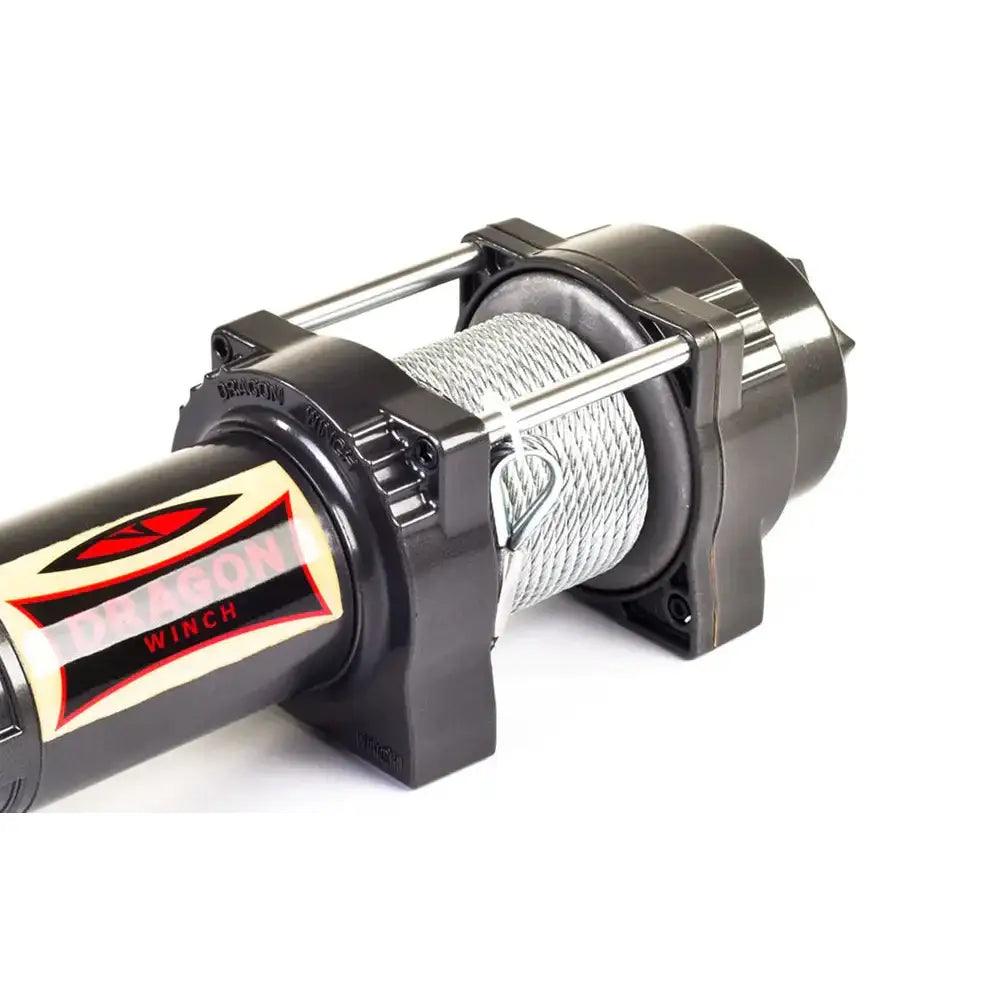

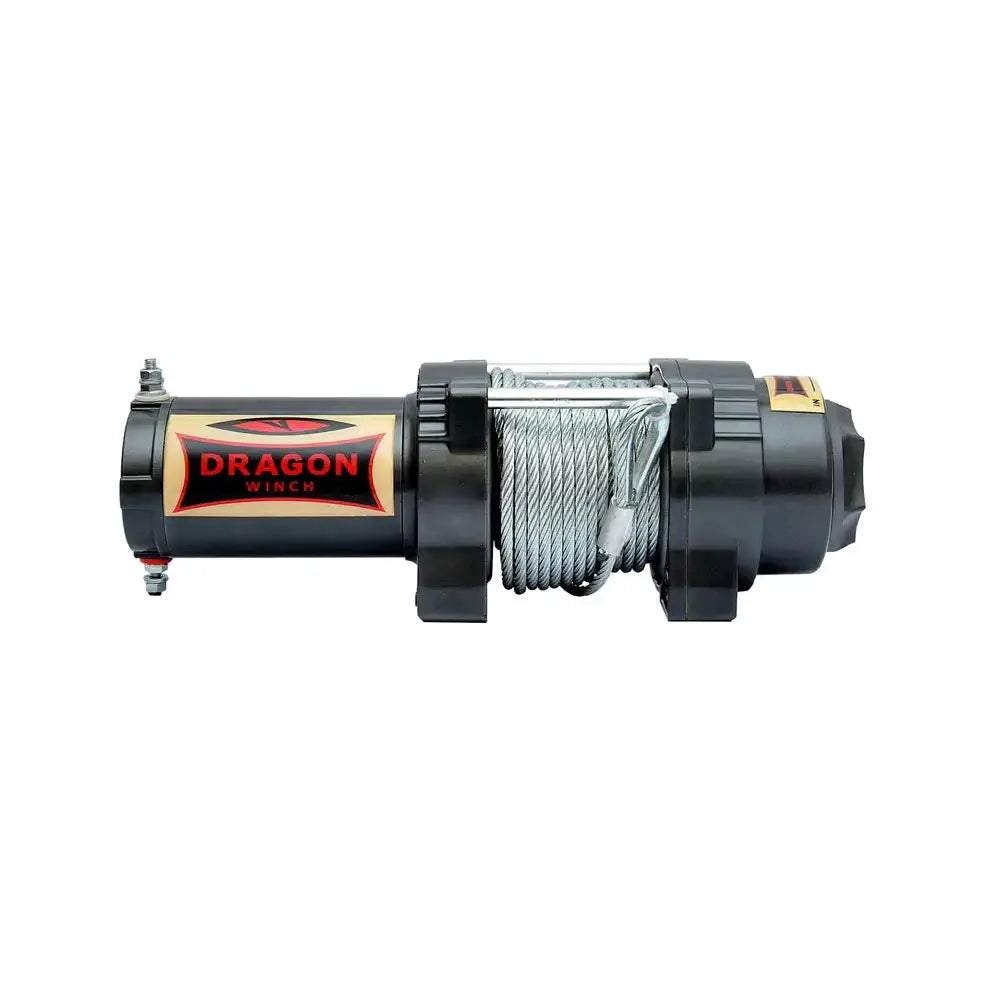

The Dragon Winch Highlander 3000 HD is ideally suited for small to medium ATVs and UTVs as it's capable of pulling up to 3,000 lb / 1,361 kg / 1.4 t. Designed with a stronger motor, heavy-duty gearbox for harsh operating conditions, the Highlander 3000 HD guarantees the highest level of reliability and safety.
5 år garanti
| Line Capacity | 3,000lbs (1,360kg) | Line Pull - No Load | 4.7 m/min (20 Amps) |
|---|---|---|---|
| Line | 15m of 4.5mm Steel Cable with Clevis Hook | Line Pull - Full Load | 2.5 m/min (130 Amps) |
| Motor | Reversible 1.6 hp (1.19 kW) 12v Electric Motor, Powers In & Out | Power Supply | Electrical (Battery) |
| Gearbox | 3 Stage Planetary | Voltage (v) | 12v |
| Reduction Ratio | 136:1 | Horsepower (hp) | 1.6hp |
| Control Options | Steering Wheel Switch & Wireless Remote Control | Braking System | Automatic |
| Warranty | 5 Year Return to Base | Line Management | Roller Guides |
| Unit Dimensions w/d/h (mm) | 347mm x 114mm x 120mm | Shipping Weight | 10kg |
| Mounting Screw Spacing (mm) | 169mm x 114mm |

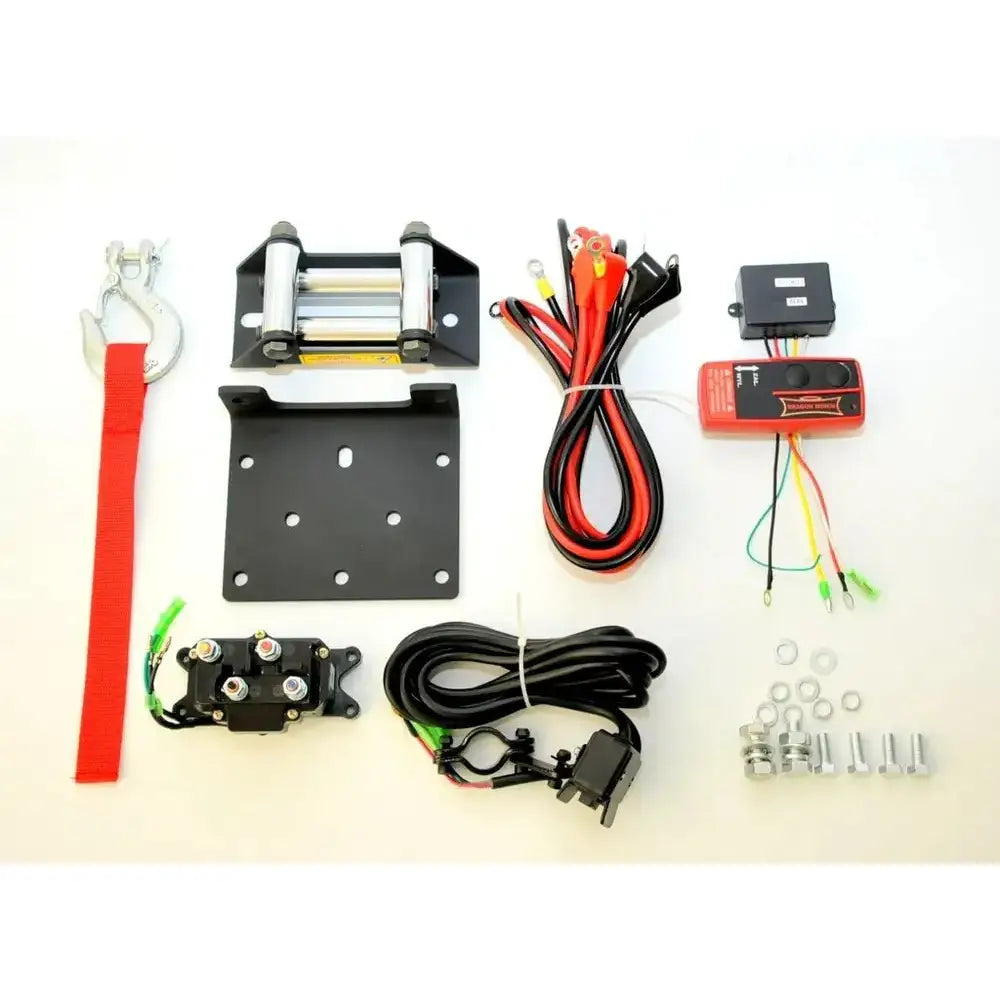

Set includes:
- x1 Steel Cable
- x1 Clevis Hook
- x1 Roller Guides
- x1 Wireless Controller
- x1 Wireless Controller Batteries (23A)
- x1 Steering Wheel Switch
- x1 Mounting Plate
- x1 Mounting Screws
- x1 Control Box
- x1 Power Cable
- x1 Relay
- x1 Instruction Manual
Vi er en autorisert distributør av Dragon Winch produkter i Norge.
