Beskrivelse

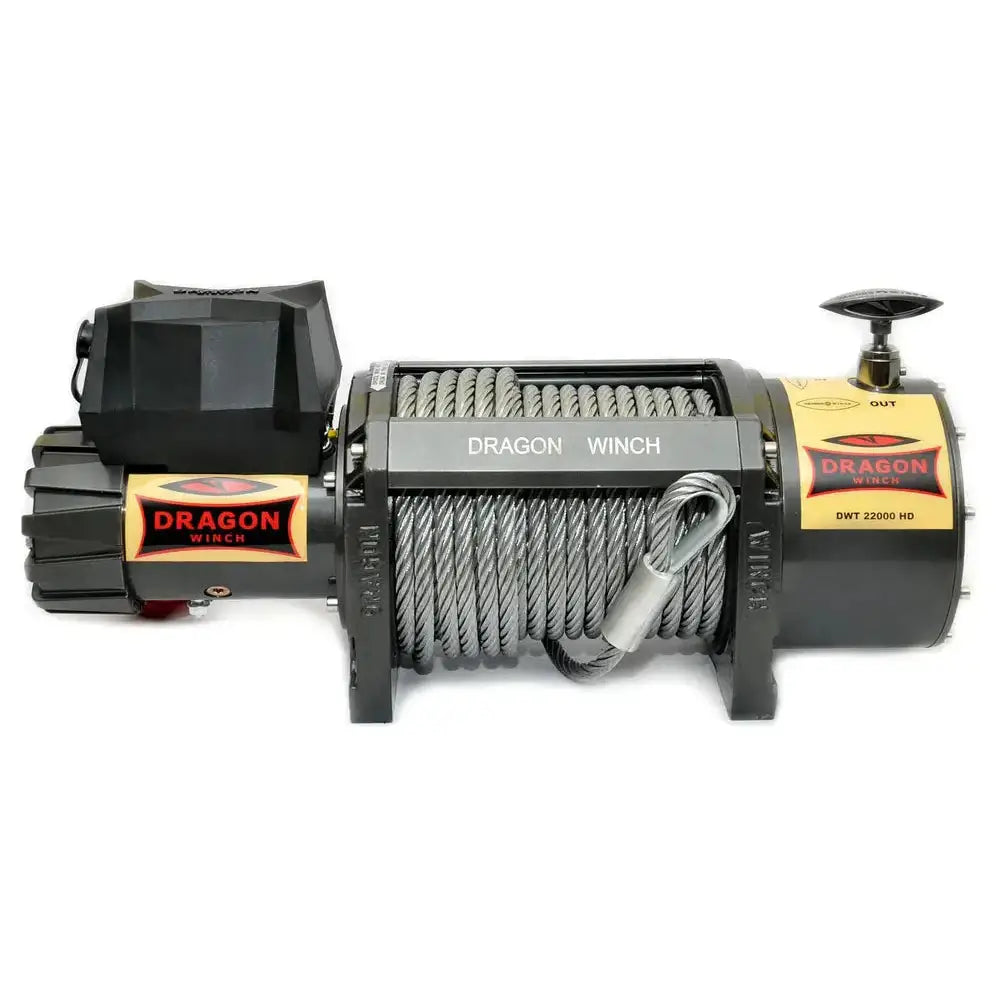

Vinsj DWT 22000 HD utviklet av DRAGON WINCH.
The Dragon Winch Truck 22000 HD is ideally suited for industrial vehicles and is capable of pulling up to 22,000 lb / 10,000 kg / 10 t. Engineered to be for the toughest of jobs the Truck 22000 HD is designed to operate in the harshest working conditions.
5 år garanti
| Line Capacity | 22,000lbs (10,000kg, 10t) | Line Pull - No Load | 4,8 m/min (42 Amps) |
|---|---|---|---|
| Line | 28m of 12mm Steel Cable with Clevis Hook | Line Pull - Full Load | 1.7 m/min (305 Amps) |
| Motor | Reversible 9,2 hp (6.9 kW) 24v Electric Motor | Power Supply | Electrical (Battery) |
| Gearbox | 3 Stage Planetary | Voltage (v) | 24v |
| Reduction Ratio | 463:1 | Horsepower (hp) | 9,2hp |
| Control Options | Wired & Wireless Controllers | Braking System | Dynamic |
| Warranty | 5 Year Return to Base | Line Management | Roller Guides |
| Unit Dimensions w/d/h (mm) | 637mm x 217mm x 271mm | Shipping Weight | 80kg |
| Mounting Screw Spacing (mm) | 254mm x 114mm |
Set includes:
- x1 Steel Cable

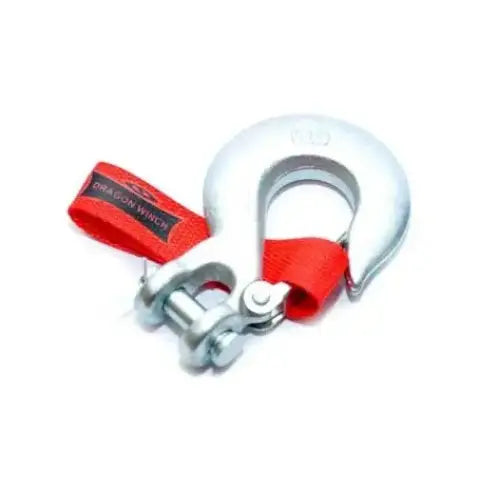

- x1 Clevis Hook

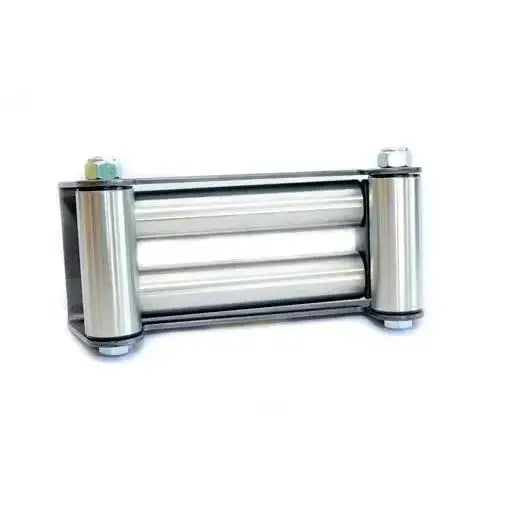

- x1 Roller Guides

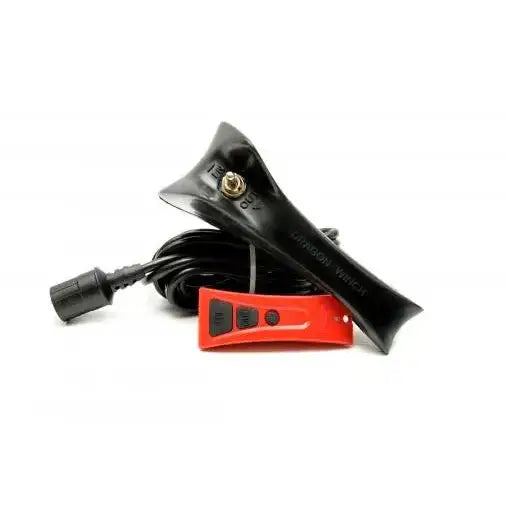

- x1 Wired Hand Control
- x1 Wireless Controller
- x1 Wireless Controller Batteries (23A)

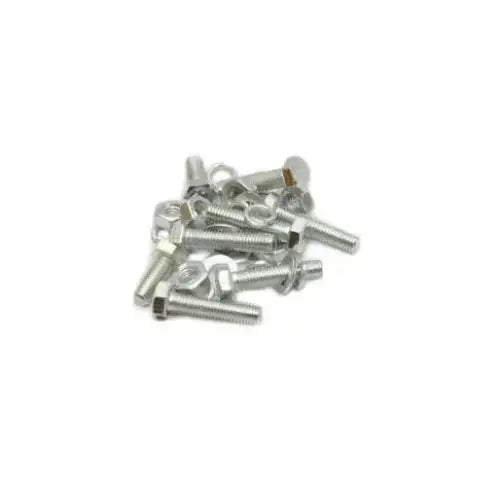

- x1 Mounting Screws
- x1 Control Box

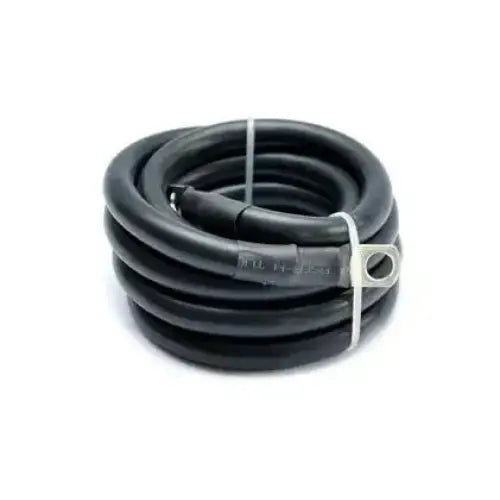

- x1 Power Cable
- x1 Instruction Manual
Vi er en autorisert distributør av Dragon Winch produkter i Norge.
