Beskrivelse

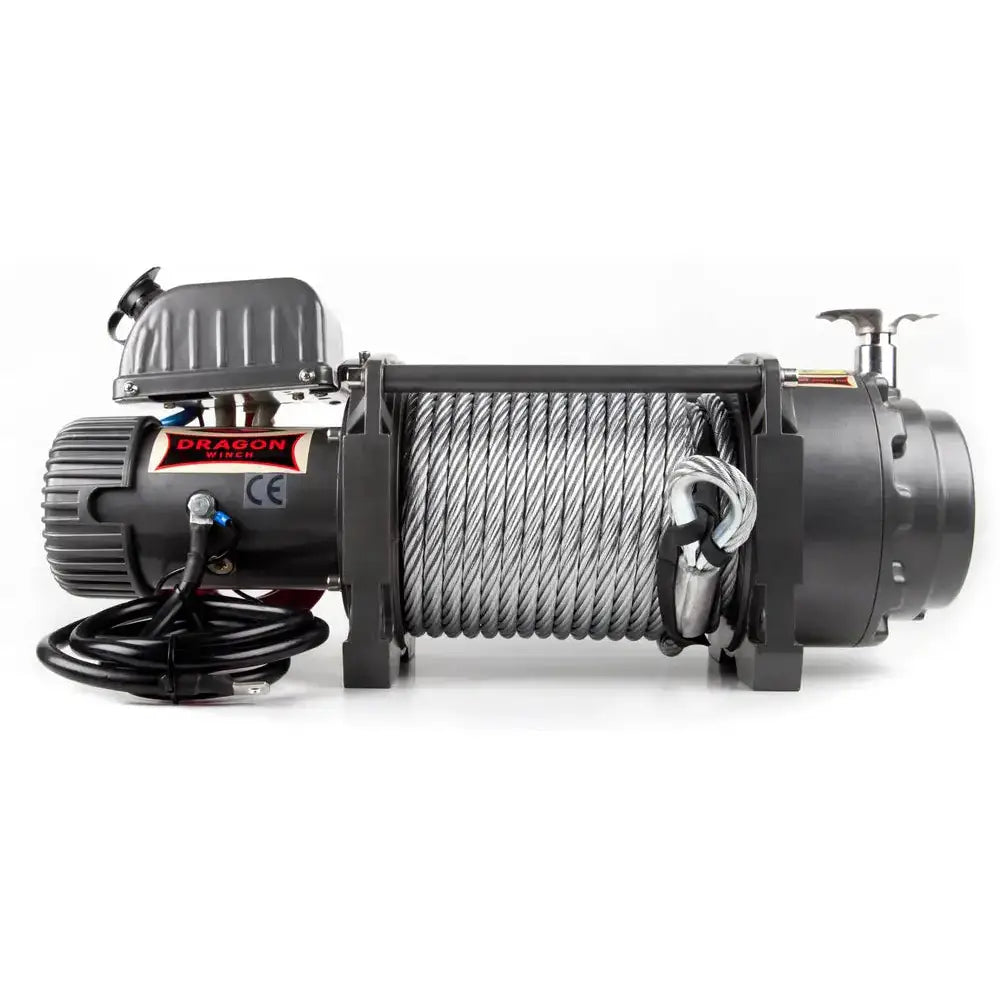

Vinsj DWT 20000 HD utviklet av DRAGON WINCH.
The Dragon Winch Truck 20000 HD is ideally suited for industrial vehicles and is capable of pulling up to 20,000 lb / 9,072 kg / 9.1 t. Engineered to be for the toughest of jobs the Truck 20000 HD is designed to operate in the harshest working conditions.
5 år garanti
| Line Capacity | 20,000lbs (9,072kg) | Line Pull - No Load | 6.5 m/min (30 Amps) |
|---|---|---|---|
| Line | 28m of 12mm Steel Cable with Clevis Hook | Line Pull - Full Load | 1.1 m/min (290 Amps) |
| Motor | Reversible 9 hp (6.71 kW) 24v Electric Motor | Power Supply | Electrical (Battery) |
| Gearbox | 3 Stage Planetary | Voltage (v) | 24v |
| Reduction Ratio | 450:1 | Horsepower (hp) | 7.8hp |
| Control Options | Wired & Wireless Controllers | Braking System | Dynamic |
| Warranty | 5 Year Return to Base | Line Management | Roller Guides |
| Unit Dimensions w/d/h (mm) | 620mm x 214mm x 290mm | Shipping Weight | 67kg |
| Mounting Screw Spacing (mm) | 254mm x 114mm |
Set includes:
- x1 Steel Cable

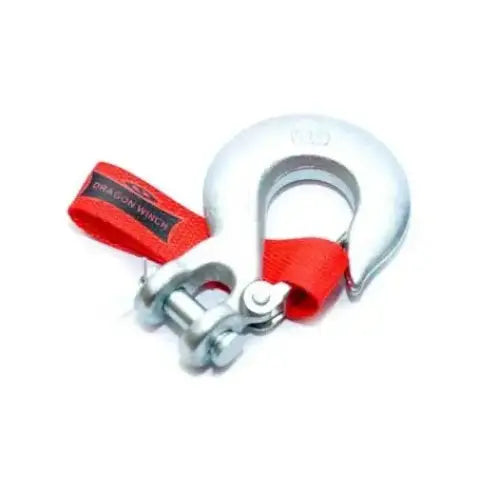

- x1 Clevis Hook

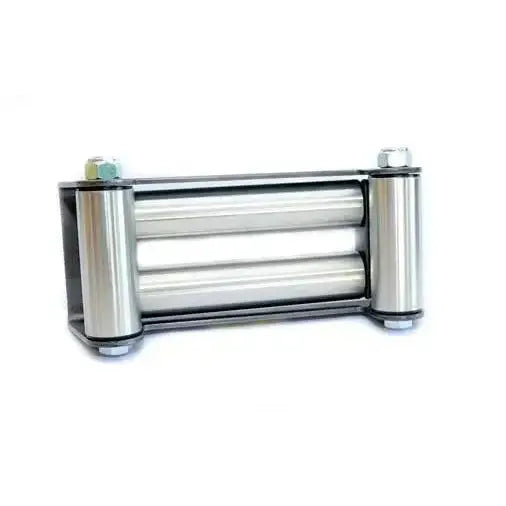

- x1 Roller Guides

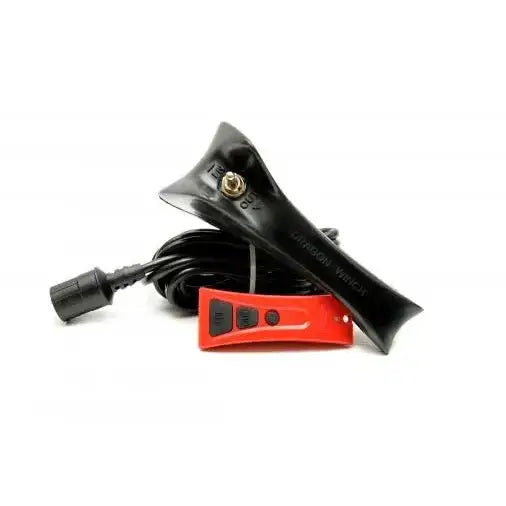

- x1 Wired Hand Control
- x1 Wireless Controller
- x1 Wireless Controller Batteries (23A)

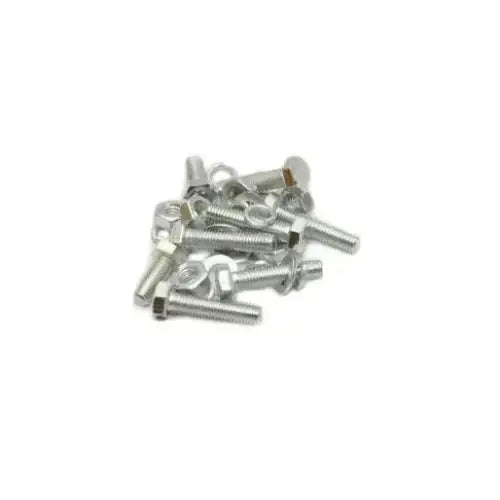

- x1 Mounting Screws

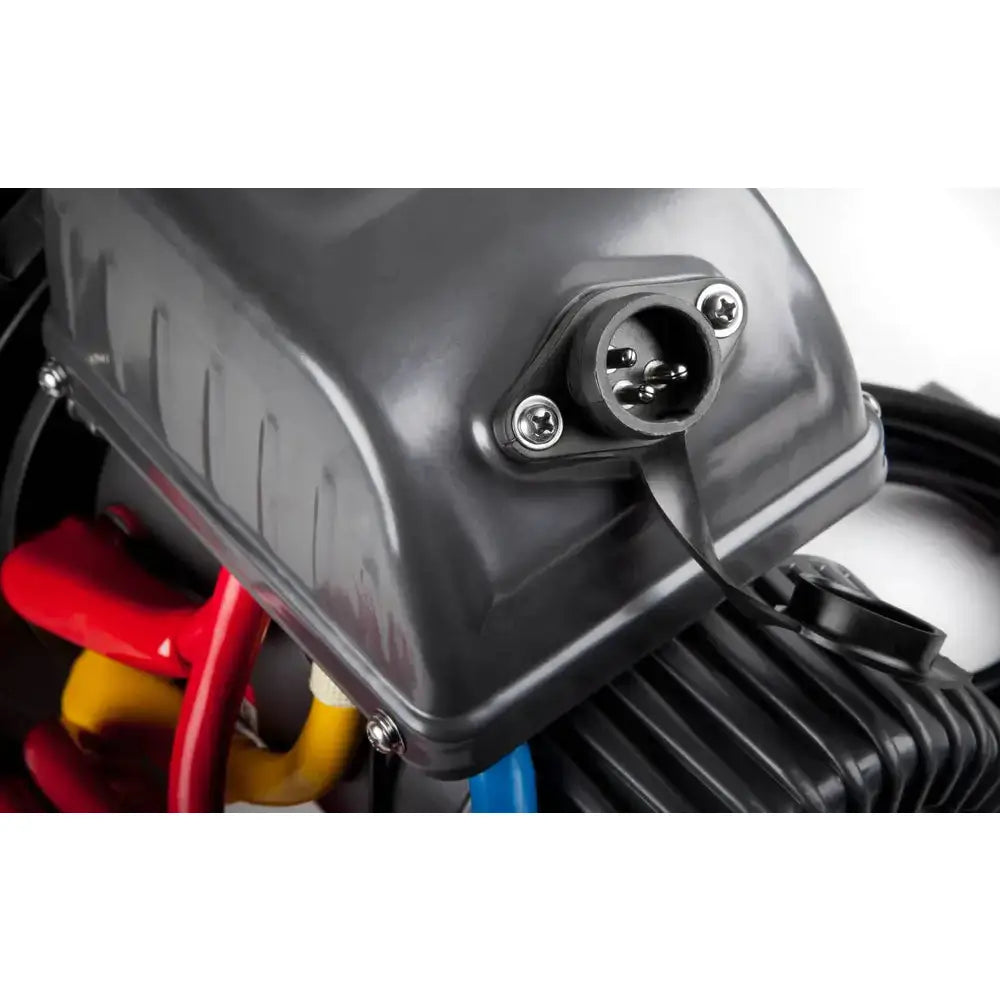

- x1 Control Box

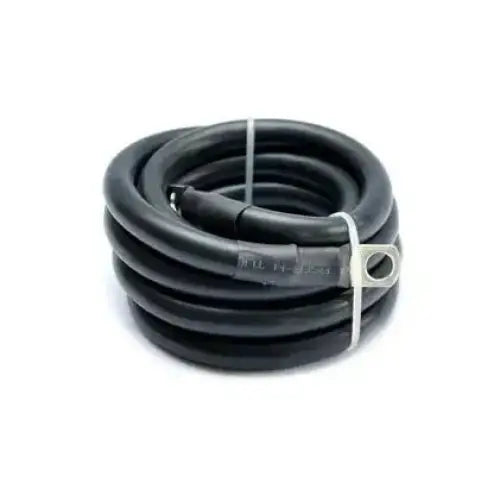

- x1 Power Cable
- x1 Instruction Manual
Vi er en autorisert distributør av Dragon Winch produkter i Norge.
