Beskrivelse

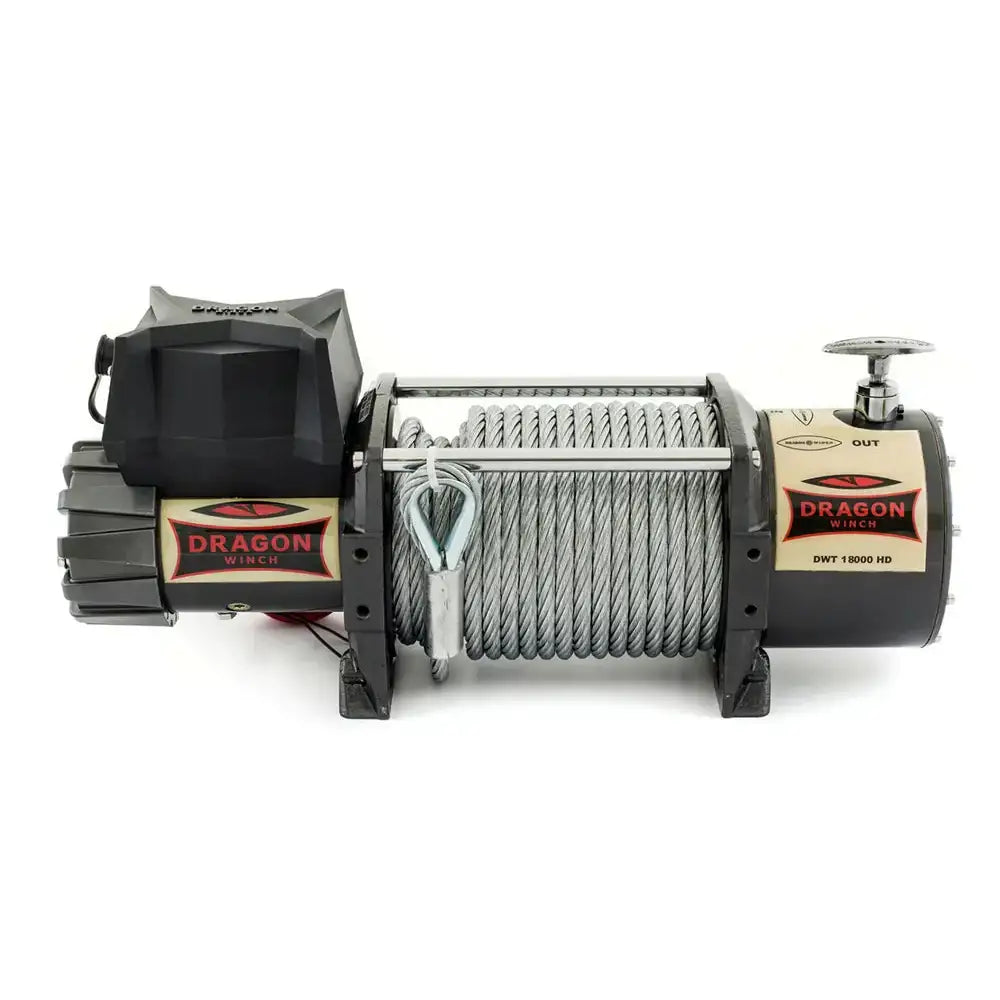

Vinsj DWT 18000 HD utviklet av DRAGON WINCH.
The Dragon Winch Truck 18000 HD is ideally suited for industrial vehicles and is capable of pulling up to 18,000 lb / 8,165 kg / 8.2 t. Engineered to be super-strong and highly durable the Truck 18000 HD has been created to operate in harsh working conditions.
5 år garanti
| Line Capacity | 18,000lbs (8,165kg) | Line Pull - No Load | 6.5 m/min (30 Amps) |
|---|---|---|---|
| Line | 28m of 11.6mm Steel Cable with Clevis Hook | Line Pull - Full Load | 1.1 m/min (290 Amps) |
| Motor | Reversible 7.8 hp (5.82 kW) 24v Electric Motor | Power Supply | Electrical (Battery) |
| Gearbox | 3 Stage Planetary | Voltage (v) | 24v |
| Reduction Ratio | 420:1 | Horsepower (hp) | 7.8hp |
| Control Options | Wired & Wireless Controllers | Braking System | Dynamic |
| Warranty | 5 Year Return to Base | Line Management | Roller Guides |
|
Unit Dimensions w/d/h (mm) |
560mm x 196mm x 267mm | Shipping Weight | 66kg |
|
Mounting Screw Spacing (mm) |
254mm x 114mm |
Set includes:

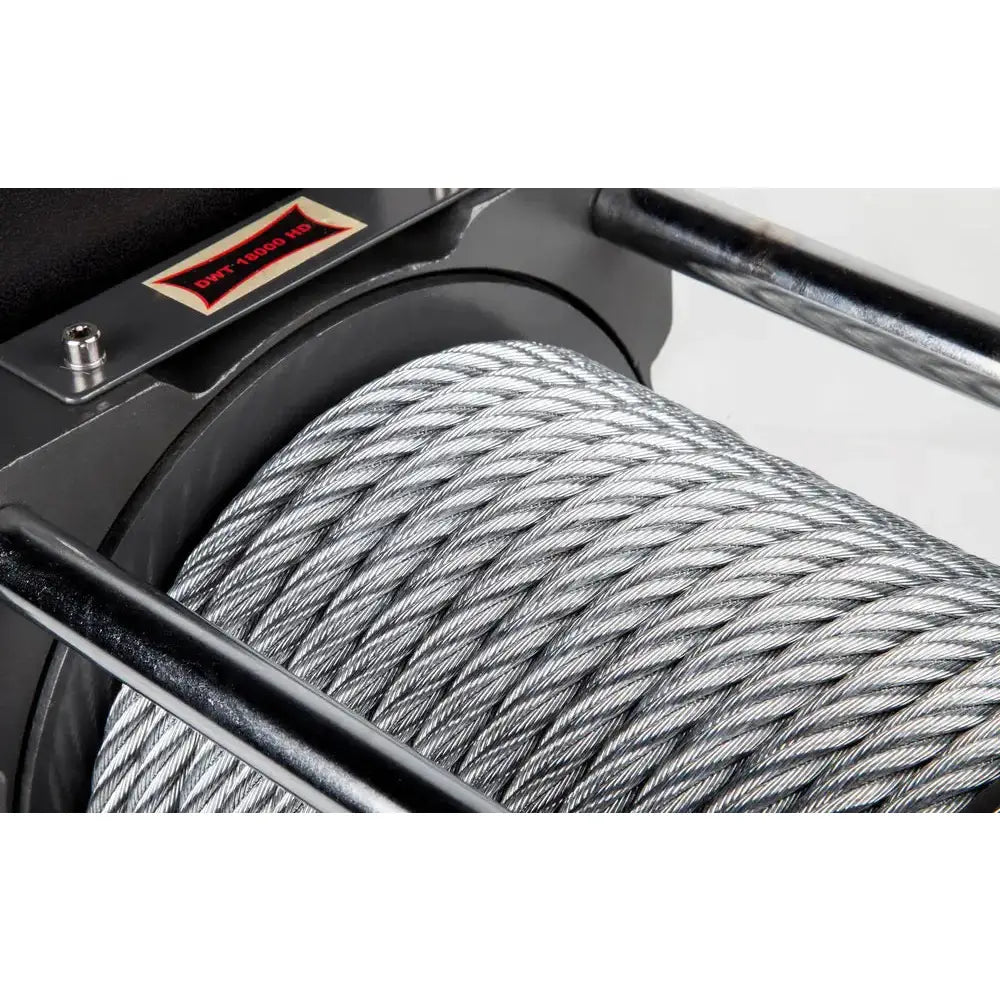

- x1 Steel Cable

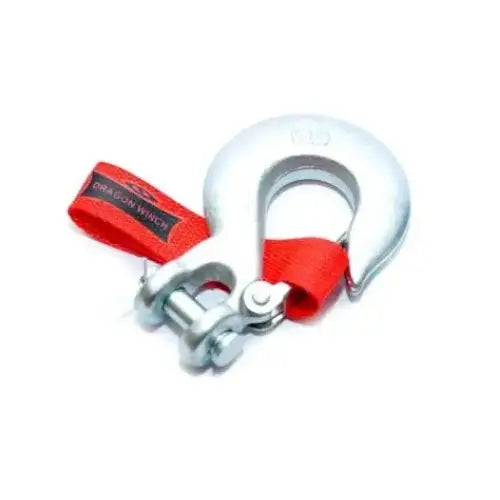

- x1 Clevis Hook

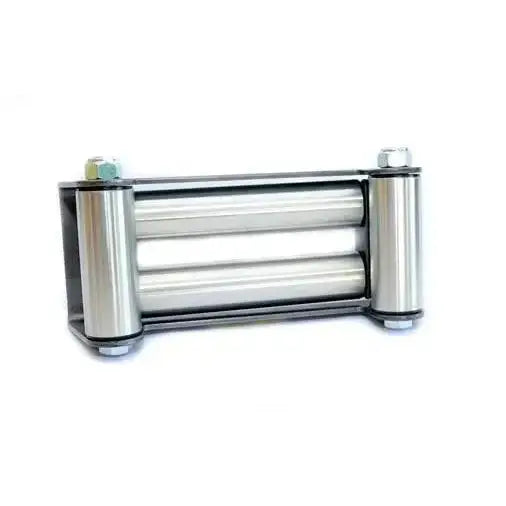

- x1 Roller Guides

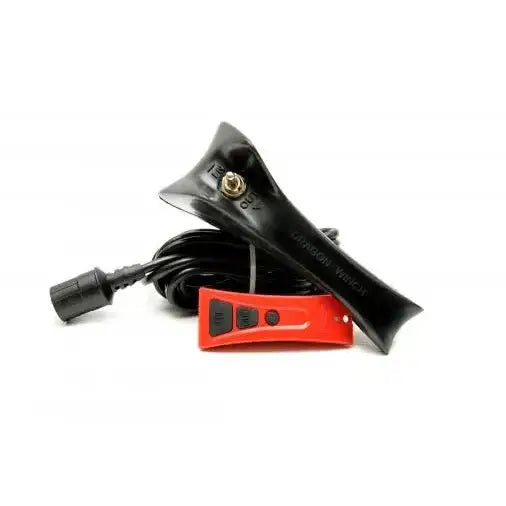

- x1 Wired Hand Control
- x1 Wireless Controller
- x1 Wireless Controller Batteries (23A)

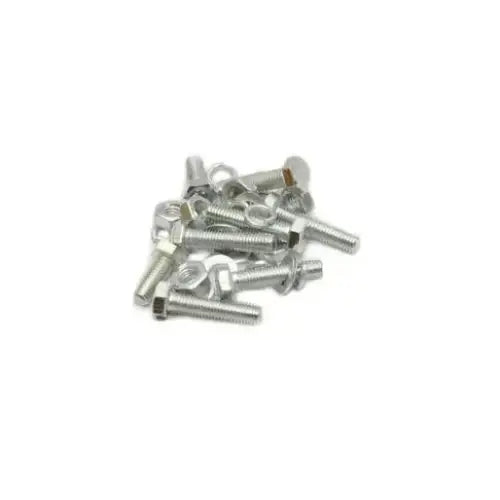

- x1 Mounting Screws

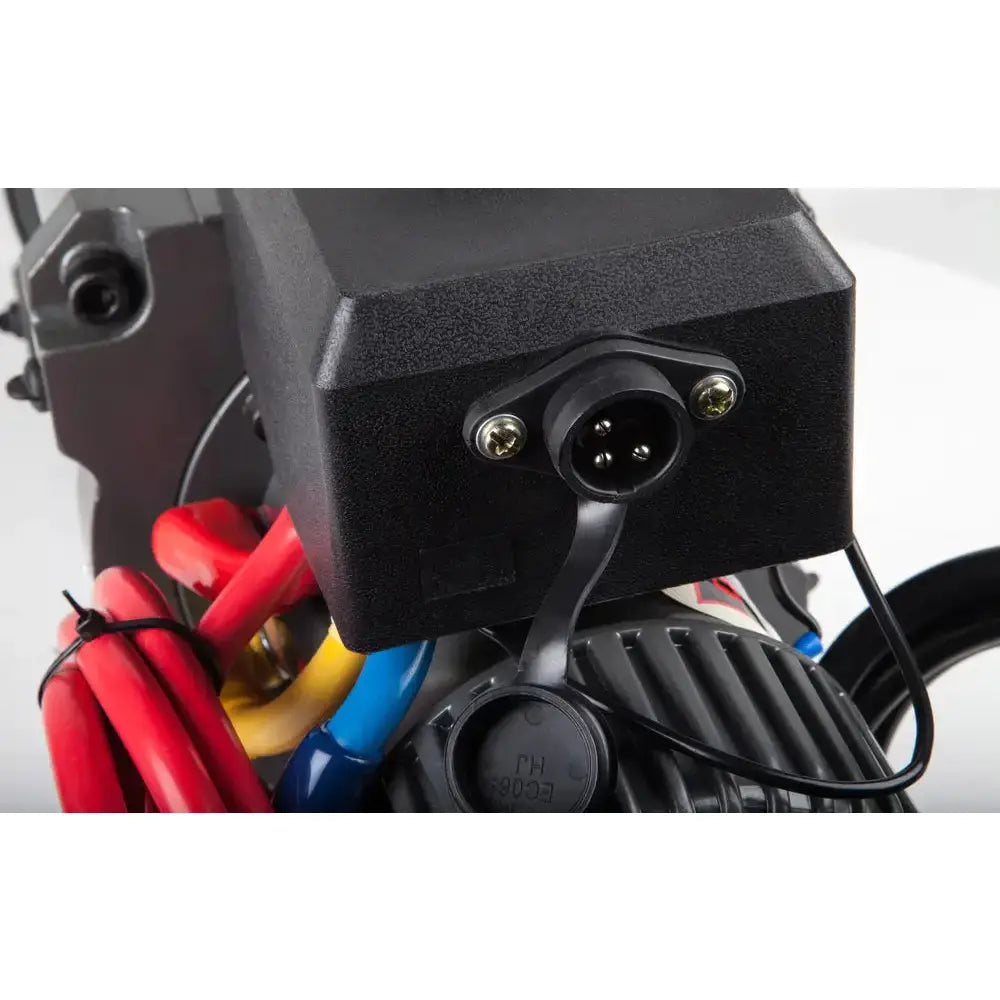

- x1 Control Box

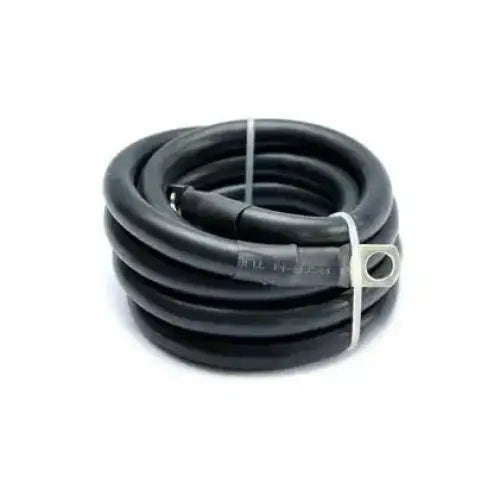

- x1 Power Cable
- x1 Instruction Manual
Vi er en autorisert distributør av Dragon Winch produkter i Norge.
