Beskrivelse

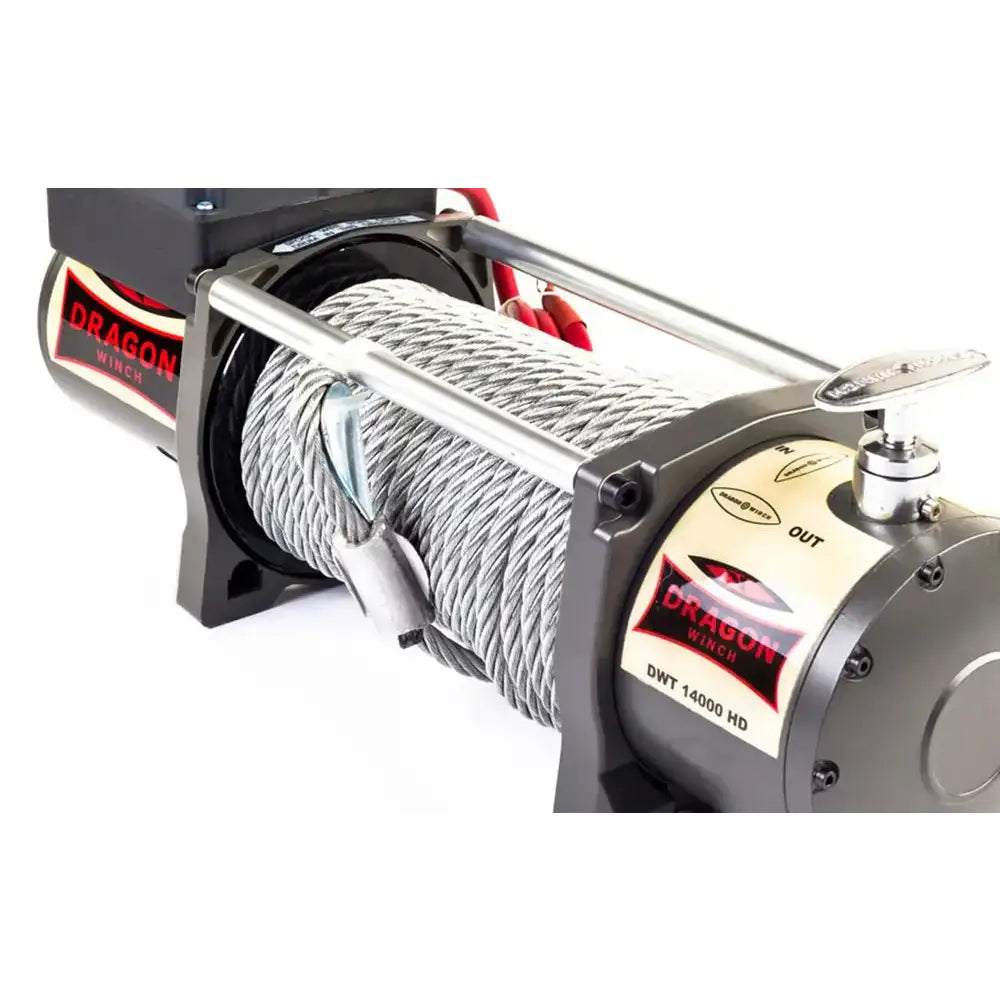

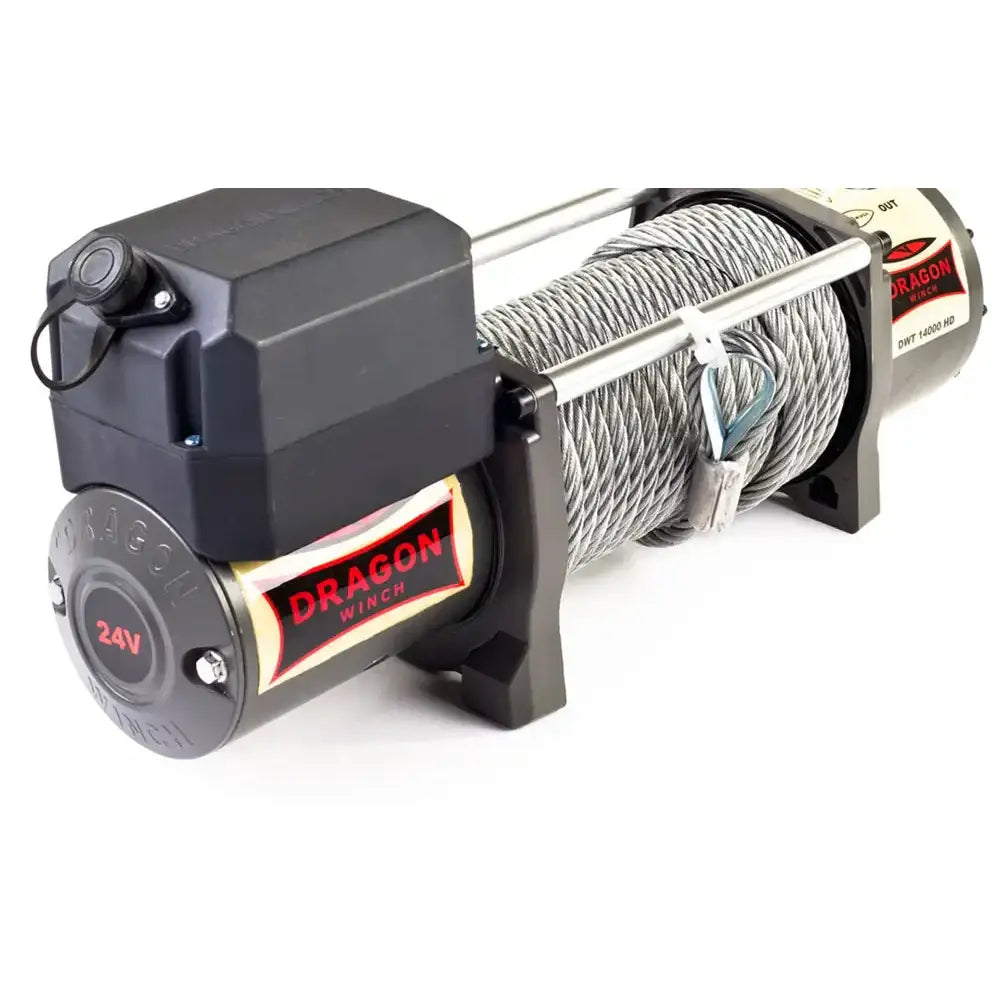

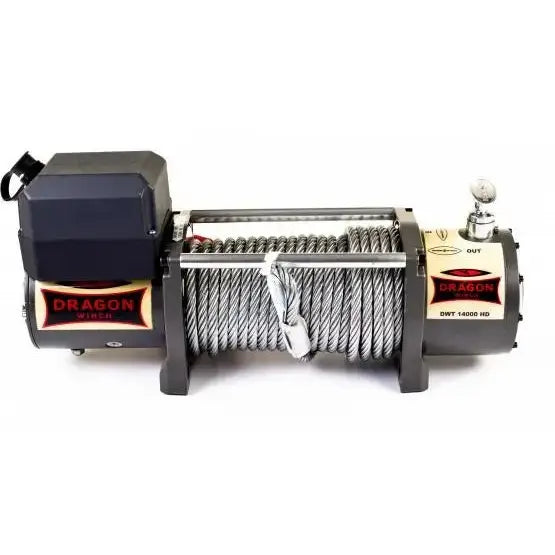

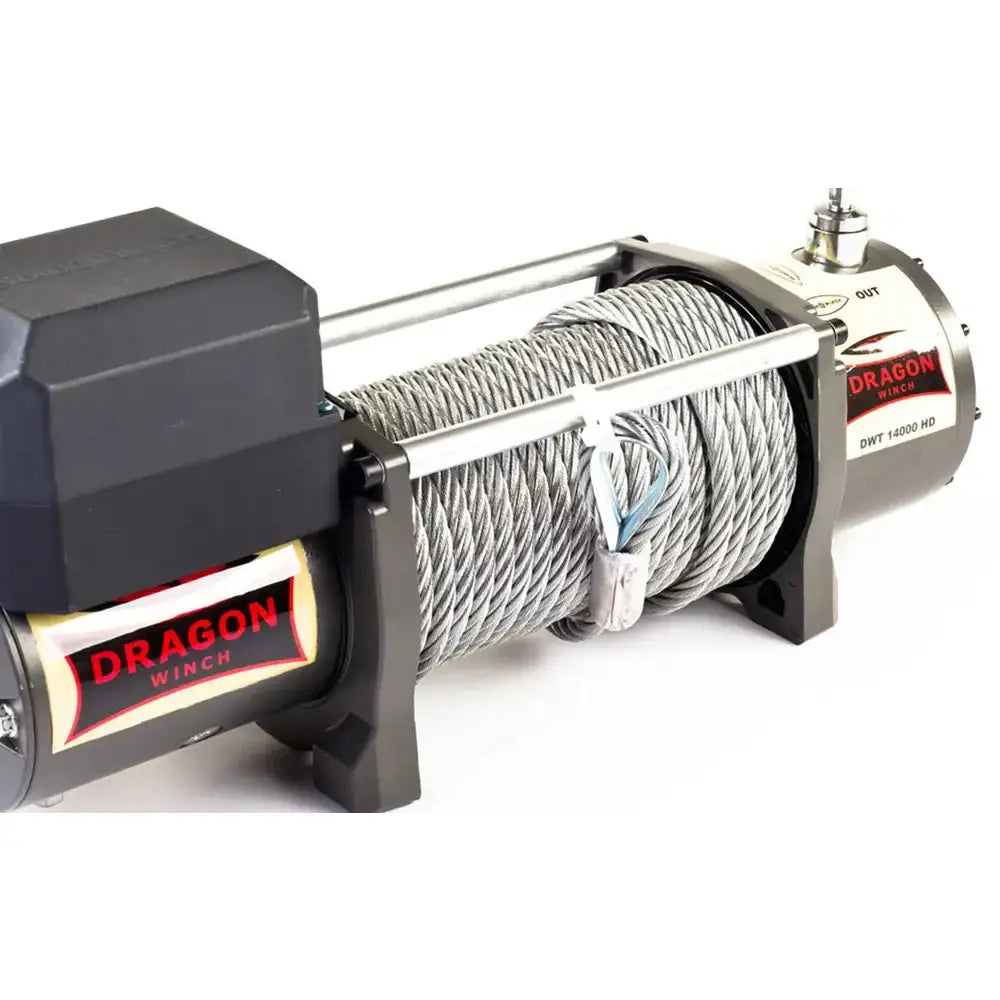

Vinsj DWT 14000 HD utviklet av DRAGON WINCH.
The Dragon Winch Truck 14000 HD is ideally suited for large off-road and industrial vehicles and is capable of pulling up to 14000lbs (6350kg). Engineered to be super-strong and highly durable the Truck 14000HD is designed to operate in the harshest working conditions.
5 år garanti
| Line Capacity | 14,000lbs (6,350kg) | Line Pull - No Load | 7.5 m/min (70 Amps) |
|---|---|---|---|
| Line | 20m of 10mm Steel Cable with Clevis Hook | Line Pull - Full Load | 3 m/min (480 Amps) |
| Motor | Reversible 7.8 hp (5.82 kW) 12v / 24v Electric Motor | Power Supply | Electrical (Battery) |
| Gearbox | 3 Stage Planetary | Voltage (v) | 12v / 24v |
| Reduction Ratio | 261:1 | Horsepower (hp) | 7.8hp |
| Control Options | Wired & Wireless Controllers | Braking System | Dynamic |
| Warranty | 5 Year Return to Base | Line Management | Roller Guides |

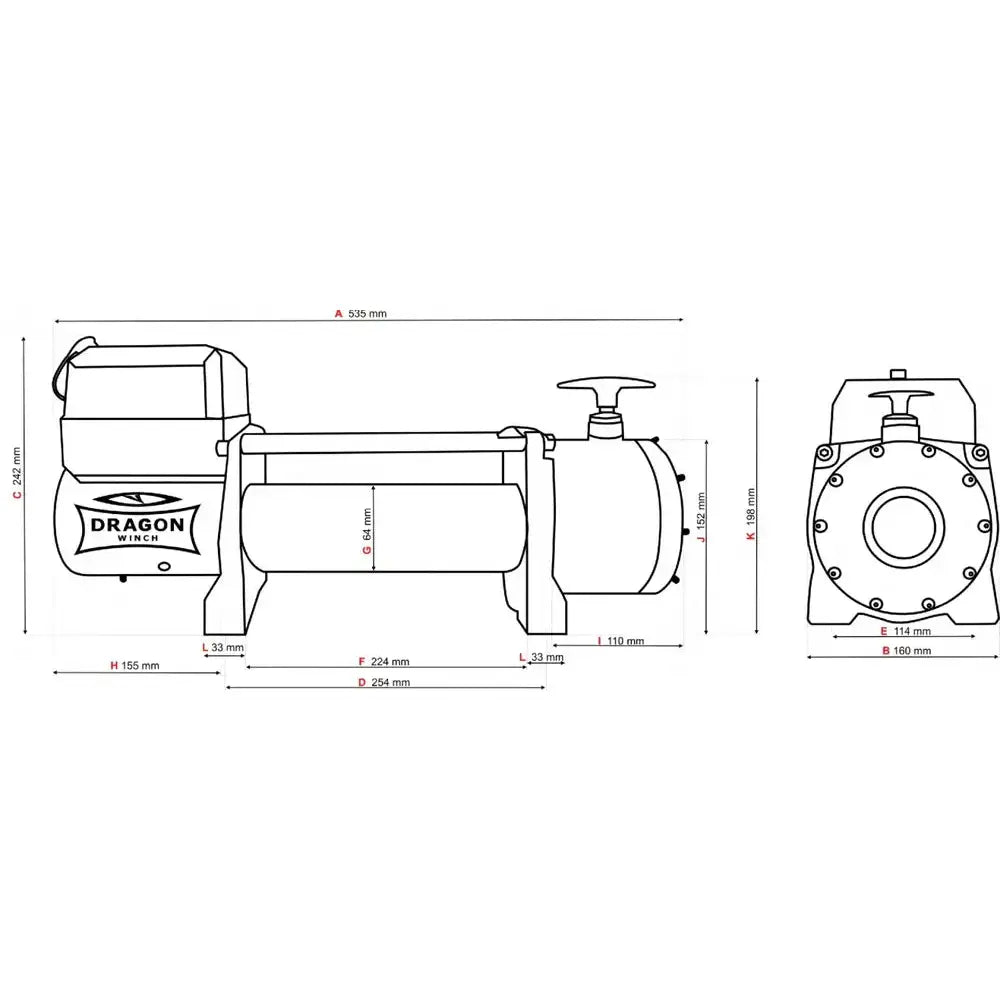

| Unit Dimensions w/d/h (mm) | 535mm x 160mm x 242mm | Shipping Weight | 46kg |
| Mounting Screw Spacing (mm) | 254mm x 114mm |
Set includes:
- x1 Steel Cable

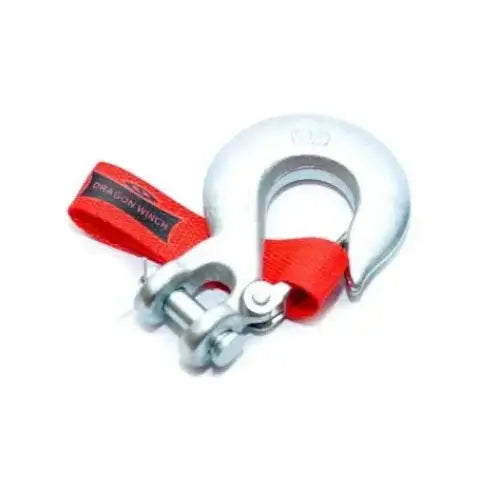

- x1 Clevis Hook

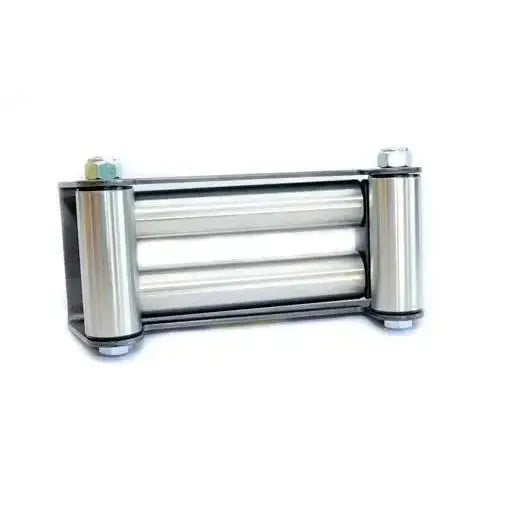

- x1 Roller Guides

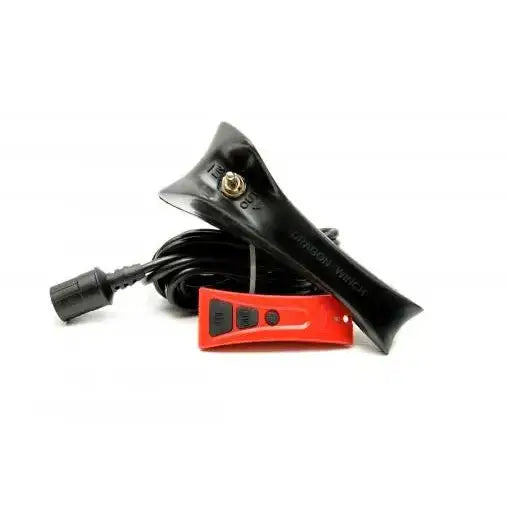

- x1 Wired Hand Control
- x1 Wireless Controller
- x1 Wireless Controller Batteries (23A)

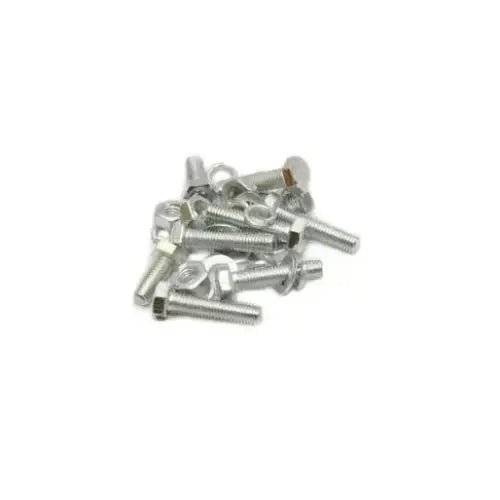

- x1 Mounting Screws
- x1 Control Box

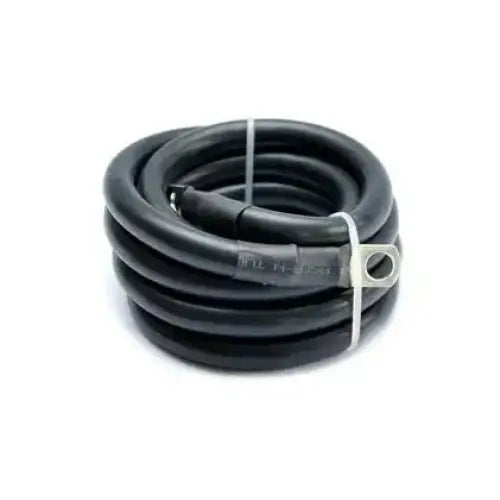

- x1 Power Cable
- x1 Instruction Manual
Vi er en autorisert distributør av Dragon Winch produkter i Norge.
