Beskrivelse
Vinsj DWH 4500 HDL utviklet av DRAGON WINCH. Tilgjengelig hos Nomax.no.

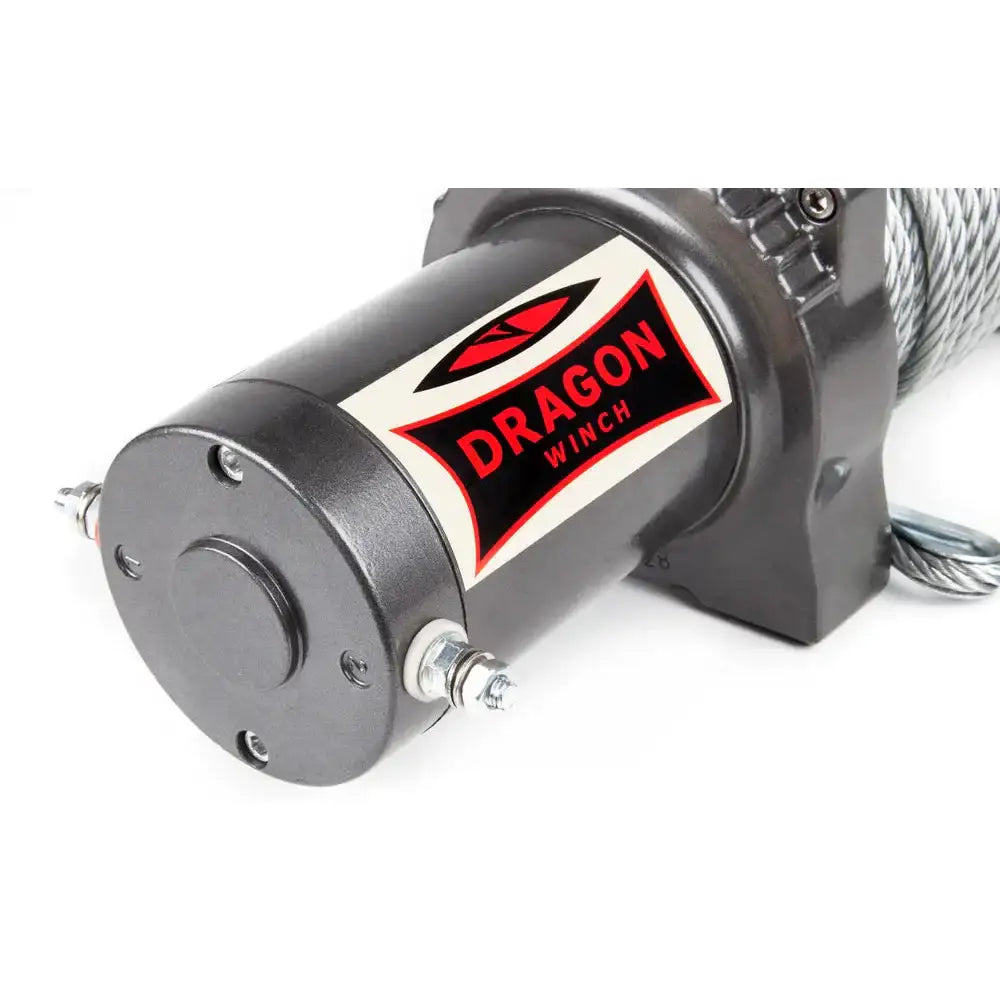

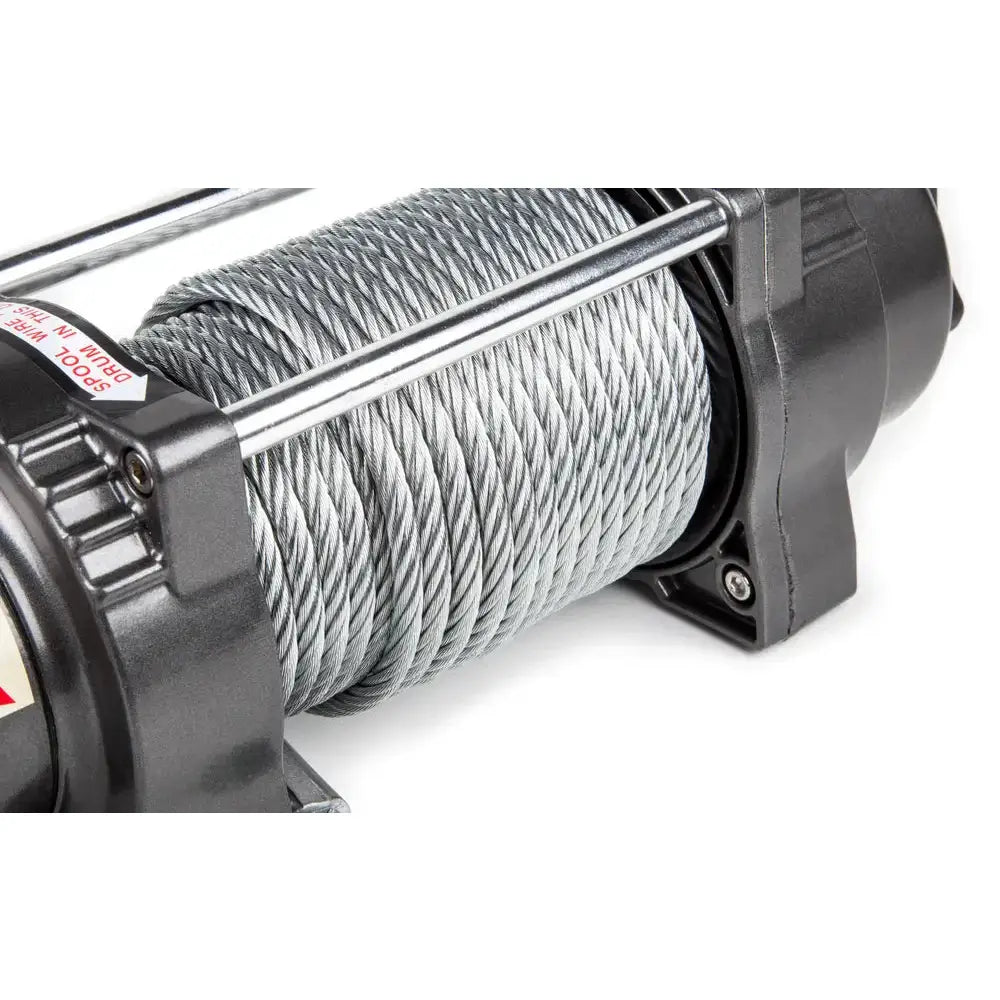

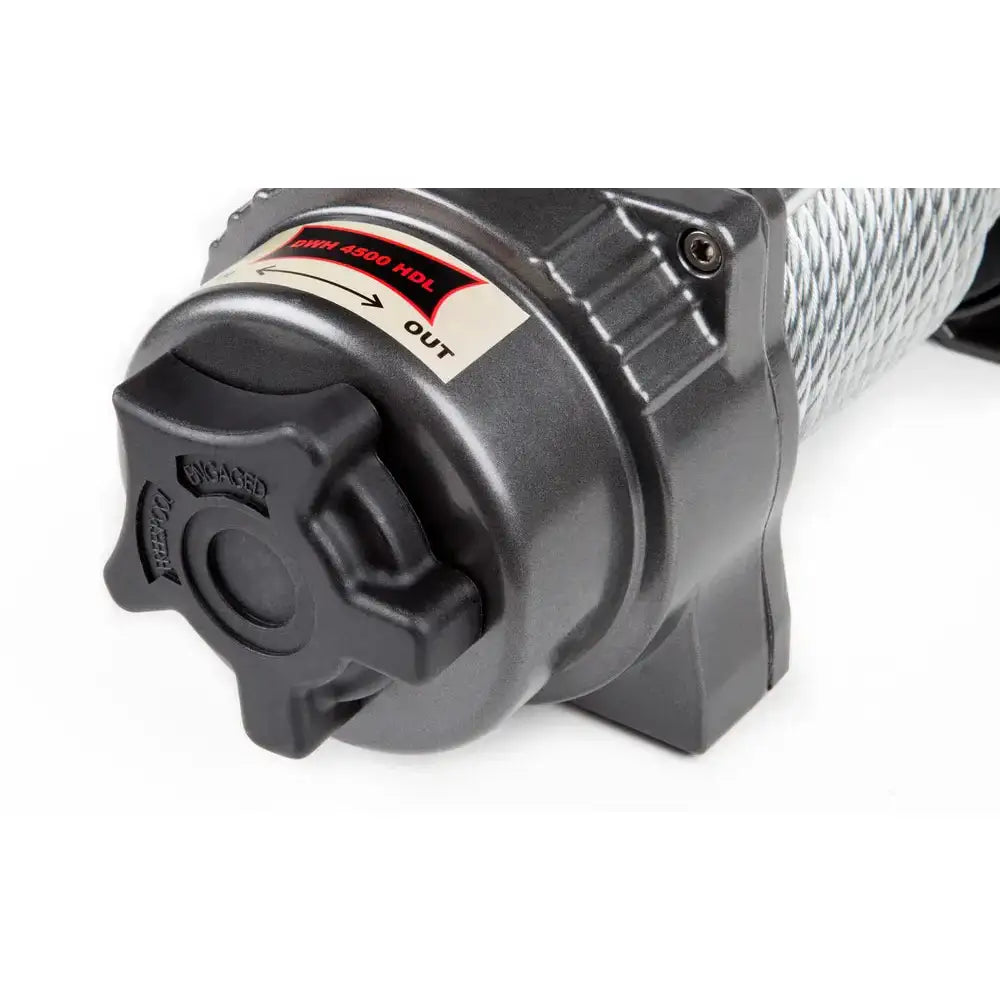

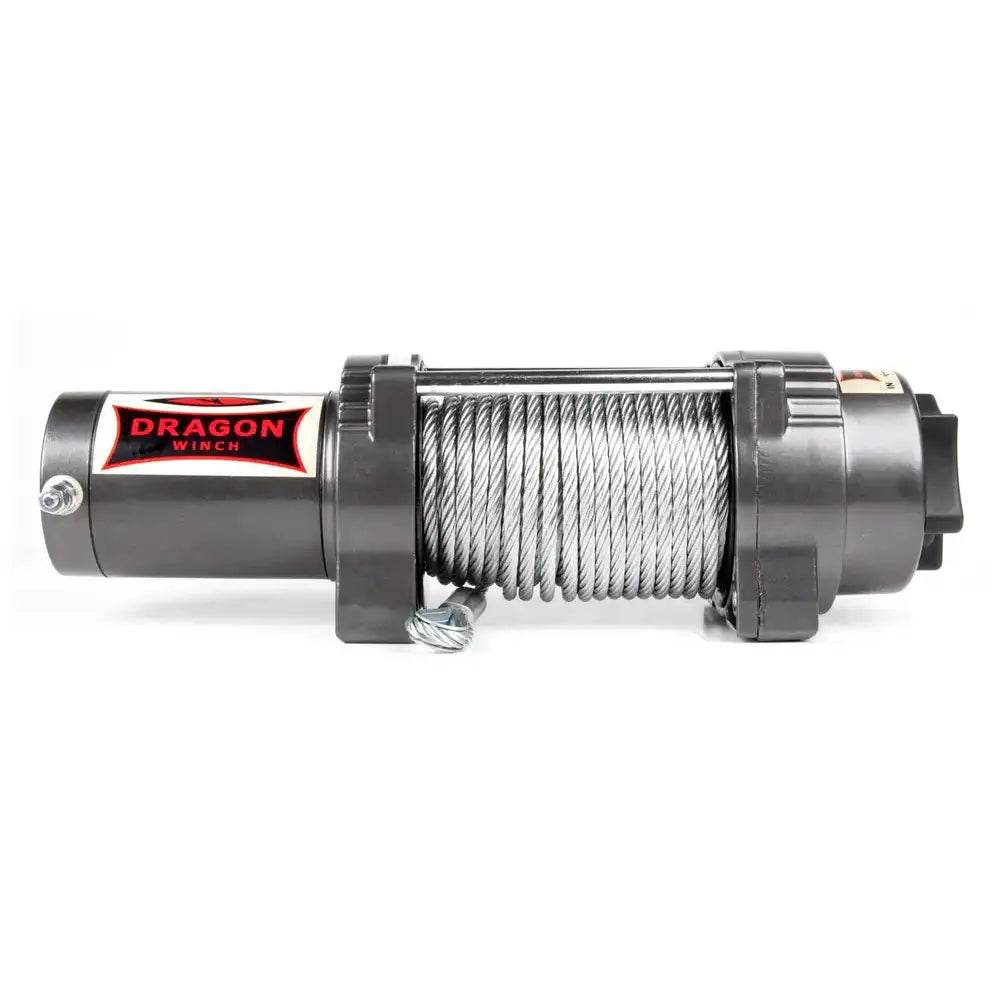

The Dragon Winch Highlander 4500 HDL is ideally suited for medium-large ATVs and UTVs and is capable of pulling up to 4,500 lb / 2,041 kg / 2.0 t. Designed with a stronger motor, high-quality gearbox and a unique construction for harsh operating conditions, the Highlander 4500 HDL guarantees the highest level of reliability and safety.
5 år garanti
| Line Capacity | 4,500lbs (2,041kg) | Line Pull - No Load | 9.4 m/min (27.5Amps) |
|---|---|---|---|
| Line | 15m (max 20m) of 4,5mm Steel Cable with Clevis Hook | Line Pull - Full Load | 2,5 m/min (176Amps) |
| Motor | Reversible 1.9 hp (1.42 kW) 12v Electric Motor, Powers In & Out | Power Supply | Electrical (Battery) |
| Gearbox | 3 Stage Planetary | Voltage (v) | 12v |
| Reduction Ratio | 136:1 | Horsepower (hp) | 1.9hp |
| Control Options | Steering Wheel Switch & Wireless Remote Control | Braking System | Automatic |
| Warranty | 5 Year Return to Base | Line Management | Roller Guides |
|
Unit Dimensions w/d/h (mm) |
378mm x 114mm x 120mm | Shipping Weight | 12.7kg |
|
Mounting Screw Spacing (mm) |
169mm x 114mm |

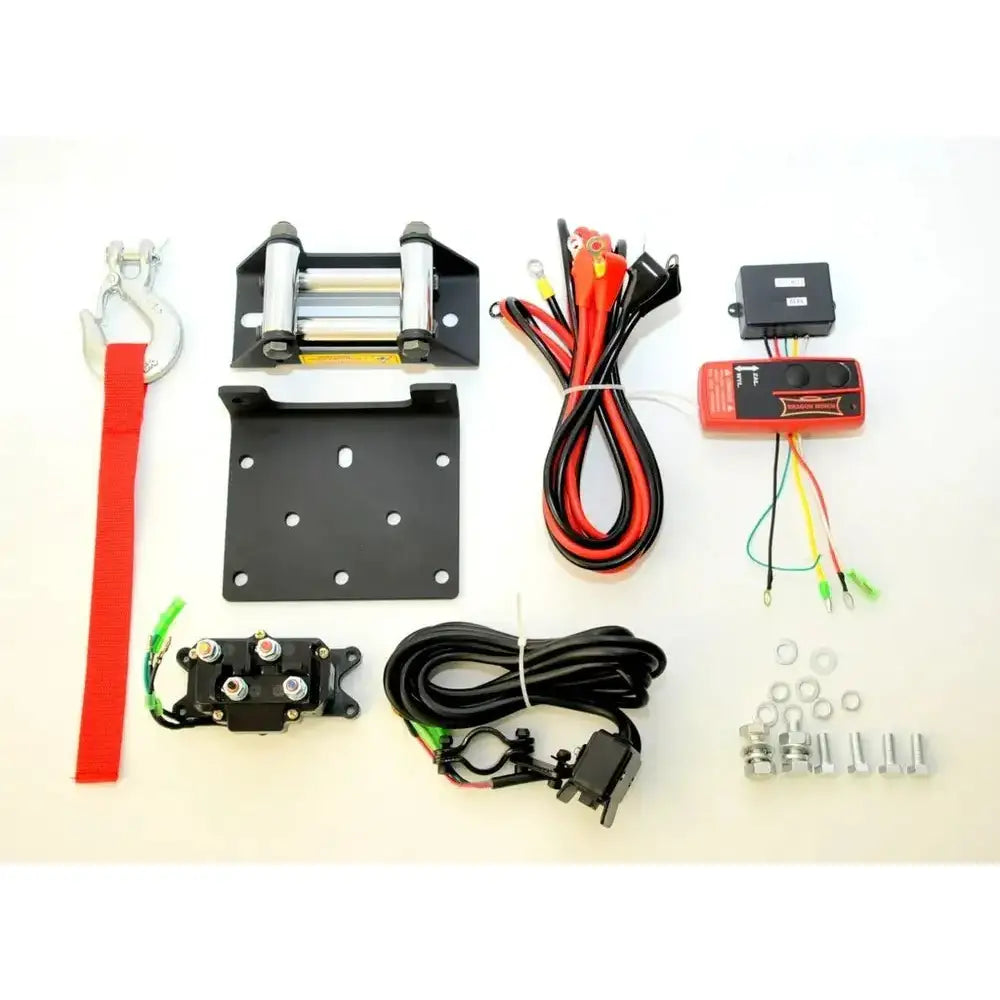

Set includes:
- x1 Steel Cable
- x1 Clevis Hook
- x1 Roller Guides
- x1 Wireless Controller
- x1 Wireless Controller Batteries (23A)
- x1 Steering Wheel Switch
- x1 Mounting Plate
- x1 Mounting Screws
- x1 Control Box
- x1 Power Cable
- x1 Relay
- x1 Instruction Manual
Vi er en autorisert distributør av Dragon Winch produkter i Norge.
